Brand:聽FORENSICS DETECTORS
Model:聽FD-COUPLER
Compatible Detectors:聽Compatible with all FORENSICS DETECTORS analyzers, pumps, and connectors.

This coupling arrangement is very versatile for those dealing with larger barbs and nipple fittings and want to connect to a Forensics Detectors analyzer or calibration cap. The standard couplers size for the Forensics Detectors barbs and nipples (on calibration caps) is suited for standard 1/8 inch (3mm) tubing. This coupling arrangement increases the inner diameter of the silicone tubing from 3mm to 6mm so you can connect tubing to barbs and nipples that are larger such as those found in incubators and industrial applications. Comes with a one plastic coupler and tubing.

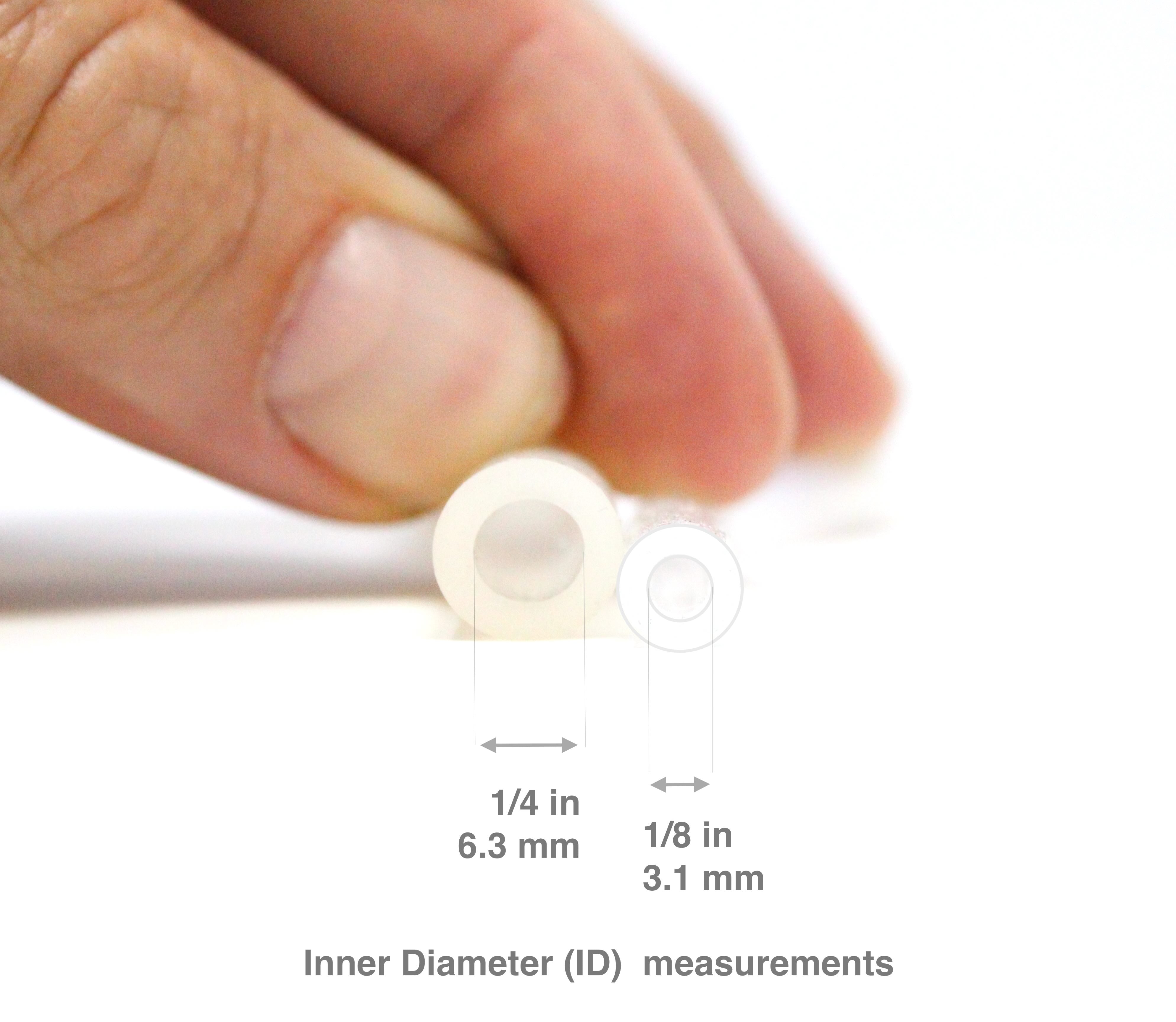

• Small Tube: 1/8 in ID x 1/4 in OD (3.1 mm x 6.3 mm). This tube fits over barbs and nipples between 3, 4 and 5 mm in diameter.
• Large Tube: 1/4 in ID x 2/5 in OD (6.3mm x 10 mm). This tube fits over barbs and nipples between 6, 7, 8 and 9 mm.
• FDA Food Grade Silicone.
• UV resistant and does not deteriorate outdoors. Extremely durable.
• Insulates extreme heat and cold, and works from -100掳F to 500掳F.
