Brand:聽FORENSICS DETECTORS
Model:聽FD-60-EX
User Manual: Correcting %LEL Factors for Gases/Vapors:聽
Blog Article:聽

• 馃殌聽INDUSTRIAL:聽Heavy-duty fixed聽gas detector. 聽Combustibles gases detection range from 0 - 100% LEL. Comes FACTORY-CALIBRATED.
• 馃寧聽USE:聽Remote control up to 8 meters. 2 x relay alarm triggered switches (50W each relay) to control fans, pumps, electrical items, garage doors, or additional alarms.
• 馃巻聽FEATURES:聽Large LED alarm and buzzer. Adjustable audio and visual.聽聽Remote control.聽聽and聽聽for remote sensing and data logging.
• 馃挭聽STRONG:聽Explosion, dust, water, and flameproof. Explosion-proof grade: Exd 鈪 T6 Gb with IP65 housing protection.
• 馃暤锔?strong>聽TRUST:聽** 1-year limited warranty ** Arrives with聽聽and聽 certificate ** Product tested and verified in the USA ** 100% quality guaranteed **

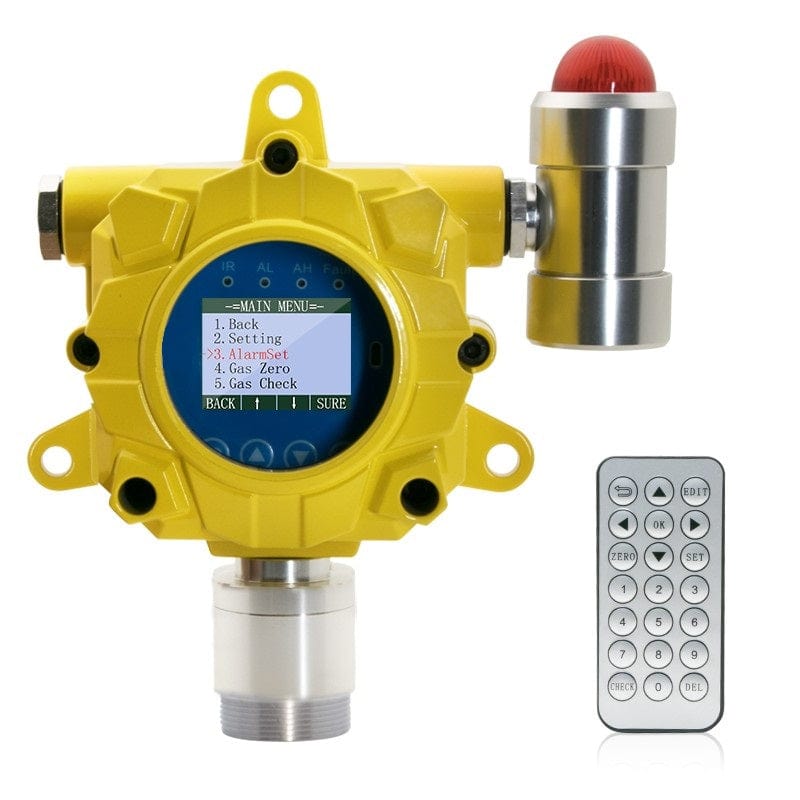

Details: Heavy-duty, fixed COMBUSTIBLES LEL EX gas detector for occupational spaces, garages, process rooms, factories, combustion control rooms, refineries, gas stations, boiler rooms, and many indoor spaces.

Detectable Gases and Vapors: Acetone, acetylene, alcohol, ammonia, benzene, butane, diesel vapors, ethanol, ethylene, oxide, gasoline vapors, hexane, isopropanol methane, naphtha, natural gas, paint thinners, propane, flammable solvents, and hundreds of other combustible gases.

Included:聽Fixed gas detector, English manual, remote control with battery, HEX key to remove the cover, 24V power adapter to plug to 110V outlet, and wiring.聽Arrives with USA NIST calibration certificate.聽

Calibration Options:聽聽

Calibration Kit聽(sold separately):聽
Calibration Gas (EX)
Calibration Gas Regulator (C10)
Calibration Cap
Tubing

Other Accessories聽(sold separately):聽聽
Air Sampling Pump Kit
Alarm Extension Fixture

Specifications

Combustibles %LEL EX Detection Range: 0 - 100% LEL with 1% resolution
Error: < +/- 5% F.S.
Explosion-Proof Grade: ATEX certified Ex d 鈪 T6 Gb
Protection Category: IP66
Response Time: <60 seconds
Power Supply: DC 24V 卤 15%
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Electrical Output: 2 x relay contact output, max power 50W each relay
Communication: 4 - 20 mA and RS485
Alarm: LED, Buzzer
Recommended Installation Method: wall-mounted
Shell Material: aluminum
Dimensions: 200 mm x 180 mm x 90mm(L x W x H)
Weight: 3 lbs
Threads: G1/2 male proof hose pipe thread size M20 x 1.5 mm
Gas Sensor Type: Catalytic Bead Gas Sensor
Sensor Life: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
