Brand:聽FORENSICS DETECTORS
Model:聽FD-600-HA-CO
Data Logging:聽
User Manual:
Blog Article:聽

聽Features:

• 馃巻 USES: Meat, poultry, and fish CO headspace analysis. USA NIST traceable calibrated in Los Angeles.
• 馃寛 COLOR DISPLAY: Graph functions. Computer data logging.
• 馃摬 BATTERY: USB recharge for light, handheld instrument. Arrives with syringes, filters, Luer lock connectors, and 100 septa.
• 馃挭 STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-proof, and explosion-proof.
• 馃暤锔?TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

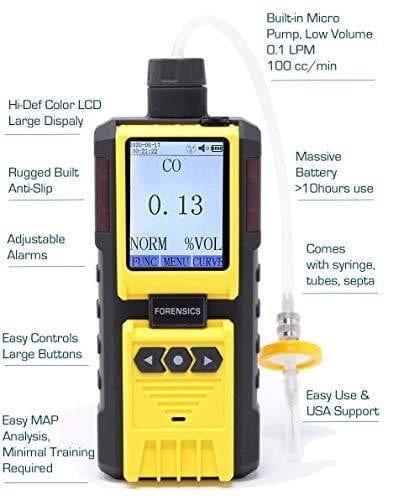

Details: This analyzer is a perfect solution to your packaging analysis聽problems when it comes to meat, poultry, and fish products. The FORENSICS CO analyzer is an excellent option with intuitive usage. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced electrochemical high-range CO sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

Included:聽CO analyzer and magnet back, English user manual, USA NIST calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septum, and tubing with Luer lock connectors.

Calibration Options:聽聽

Calibration Kit聽(DIY sold separately):聽聽

Bump Gas (CO)

Accessories and Parts (sold separately):
Gas Detector Waterproof Case
Gas Detector Stand
Headspace Kit, Needles, Filters, Tubing, Septa
Gas Sensor Replacement (CO) (email us)

Specifications

Carbon Monoxide (CO) Detection: 0 - 1% with 0.01% resolution (100 ppm)
Error: 鈮?卤 5% F.S.
Response Time: <30 seconds
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Battery: DC 3.7V Li-on battery, 3200 mAh
Gas Sensor Type:聽Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration period: 12 months
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb
Weight: 14 oz
Dimensions: 5.1 in 脳 2.6 in x 1.2 in
Charge Time: 3 hours
Operating Time: > 10 hours
Pump Rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min)
Alarm: LED Alarm
