Brand:聽GASCO
Model: FD-REG-MFV
User Manual:
Blog Article:

Features:

• 鈿涳笍聽 QUALITY:聽Quality and basic gas regulator for gas detectors.
• 馃彆锔?USE: Fits all gas calibration bottles with C10 thread.
• 聽FLOW RATE: Adjustable between 0.0 - 1.0 LPM.
• 馃殌 COMPATIBLE: Compatible with GASCO, RAE, RKI, BW, Industrial Scientific, Forensics Detectors, CTI, MESA, AIRGAS gas bottles.
• 馃暤锔?span>聽TRUST: ** 1-year limited warranty ** Customer support in Los Angeles, CA, USA.聽

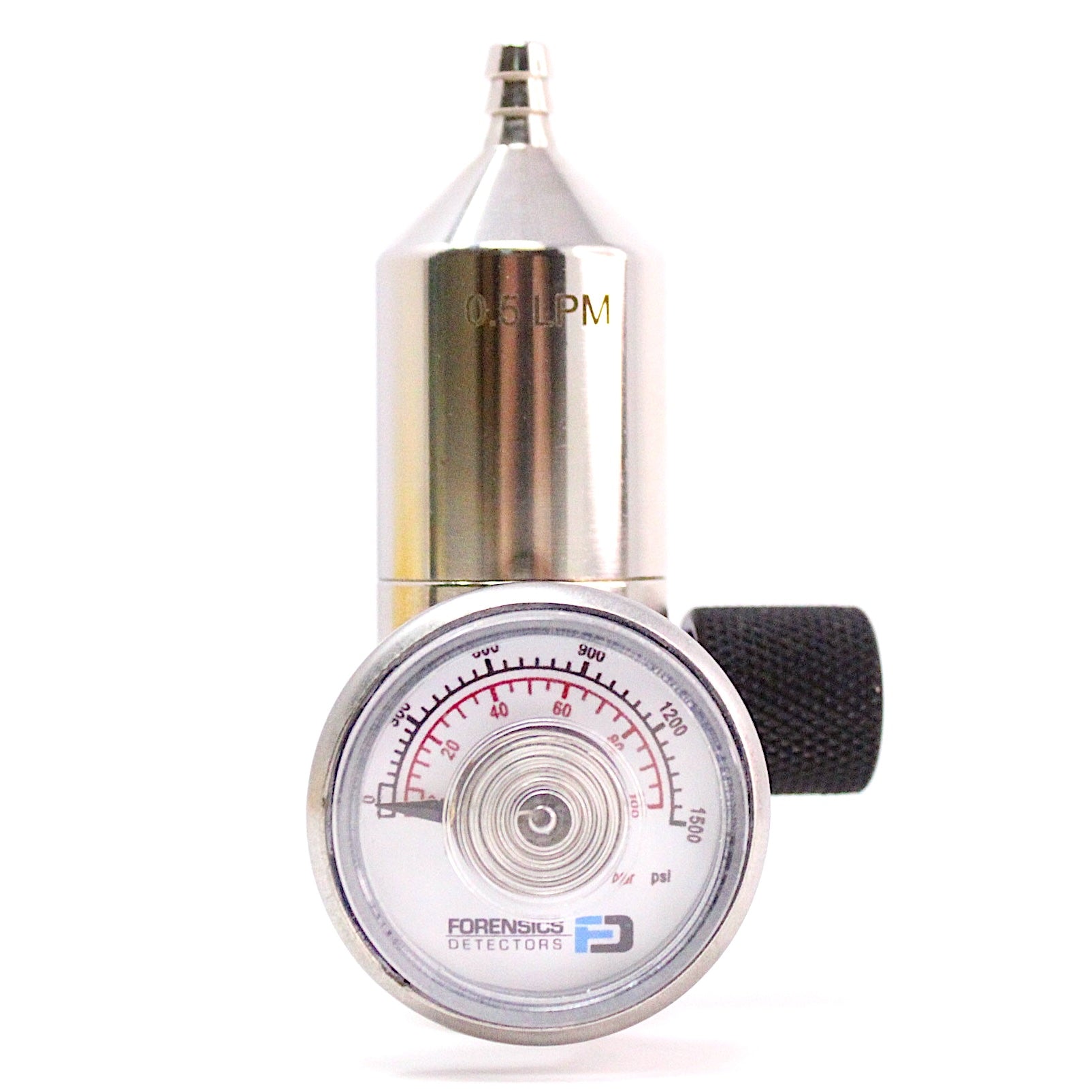

Details: A gas regulator controls the gas flow to your gas detector or analyzer and also reduces the pressure from a compressed reference gas or calibration gas bottle (which is at a high pressure and compressed to fit a large amount of gas in a small volume of space). A gas regulator allows one to control the gas flow to your instrument for proper and safe calibration. Safety is paramount when working with pressurized gases, so please adhere to safety protocols to prevent accidents and ensure accurate calibration results.

Specifications

Connection Thread: C10 (5/8"-18 UNF)聽
Material: Nickel-plated Brass
Gas Use Type:聽Reactive and Non-Reactive
Flow (LPM):聽Adjustable between 0.0 - 1.0 LPM (1st line = 0.3LPM, 2nd line = 0.5LPM, 3rd line = 0.7 LPM, 4th line = 1.0 LPM)
Barb Size:聽6mm outer diameter
Gauge Max Pressure: 1500 PSI
Dimensions: 3.2 x 2.1 x 2.0 inches
Weight: 14 oz
