Brand: FORENSICS DETECTORS
Model: FD-600M-CO
Data Logging:聽
User Manual:
Blog Article:
Features:

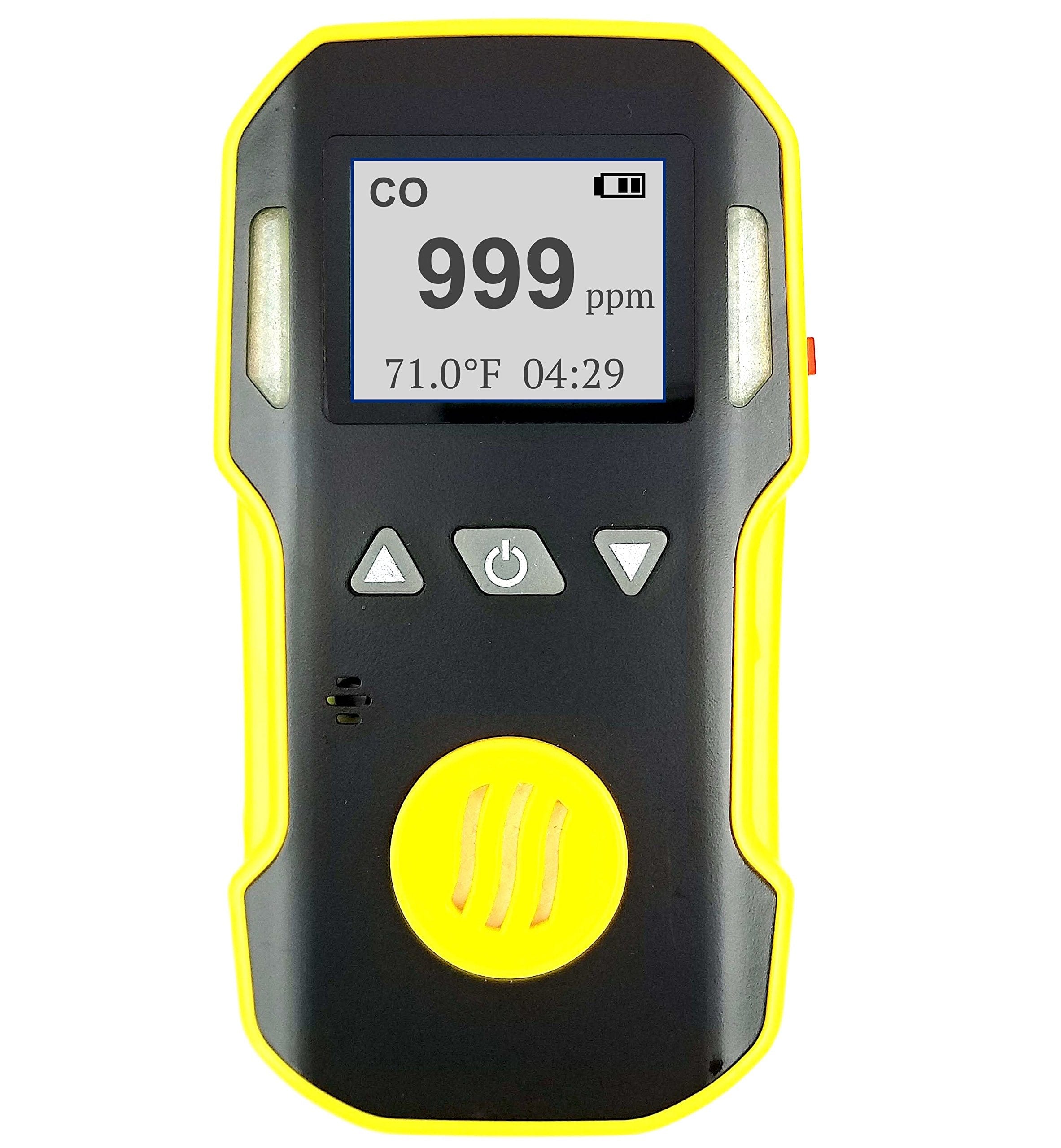

Details:聽Looking for a top-quality carbon monoxide gas data logger? This is it. It has the advanced features of a high-end carbon monoxide gas analyzer with graphing and data logging functionality. The data logging function is built in which means the unit can run by itself and the data will be captured聽by its internal Memory Card (512MB) that can store 1,000,000 logs, equivalent to 277 hours at 1 sample/sec. The internally logged data is then retrieved by connecting a Type C USB cable to a computer and viewing the logged *.CSV files, just like聽you would with an external USB drive. Very easy and simple, with no extra software required. The *.CSV file can then be imported into EXCEL to graph and manipulate as required.
If you want it to data log continuously with a long sample rate, then no problem. Just set the sample rate to a large value and plug the unit into cable power so it is always charging ON, and you are good to go for many days of sampling.聽
This powerful analyzer聽has a聽built-in pump allowing for super-fast detection & response and comes with a 4ft probe that is perfect for sampling gas in indoor or outdoor areas. Customers use it for tracking聽indoor carbon monoxide levels and聽to help pinpoint聽carbon monoxide gas leaks.聽 The detector is USA NIST traceable and calibrated in Los Angeles. If you require a more basic CO detector, we recommend our . For and make sure you select the appropriate carbon monoxide analyzer. For home inspectors that don't require a data logger function, then a more affordable is recommended.
Included:聽Carbon Monoxide Data Logger Analyzer, English manual, USB charging cable, charger, analyzer case, 4ft telescopic stainless probe, tubing, and USA NIST calibration certificate.
Calibration Options:聽聽
Calibration Kit聽(DIY sold separately):聽聽
Calibration Gas (CO)
Calibration Gas Regulator (C10)
Calibration聽T-piece & Tubing
Accessories聽(sold separately):聽聽
Bump Gas (CO)
Gas Sensor Replacement聽(CO)聽
Gas Detector Stand
Tubing
Particle Gas Filter
Probe
Carbon Monoxide (CO) Range: 0 - 1000 ppm with 1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard:聽USA NIST Source
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life:聽2 to 3 years
Error:聽<卤5% F.S.
Response Time: < 30 seconds
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Battery:聽DC3.7V Li-Ion battery 4000mAh
Charging Time:聽4 hours
Operation Time:聽> 5 hours
Dimension/Weight:聽9.09 x 3.43 x 2.36 inches, 800grams
Rating:聽ATEX certified Ex ib IIC T4 Gb. IP65.
Pump Noise:聽<60dB
Pump Flow Rate:聽0.3 to 0.7 LPM
Inlet Air Barb:聽3mm (1/8 inch) outer diameter barb
Charger Port:聽USB Type C (use at least 1A/5V charger)
Display:聽3.5-inch color HD display

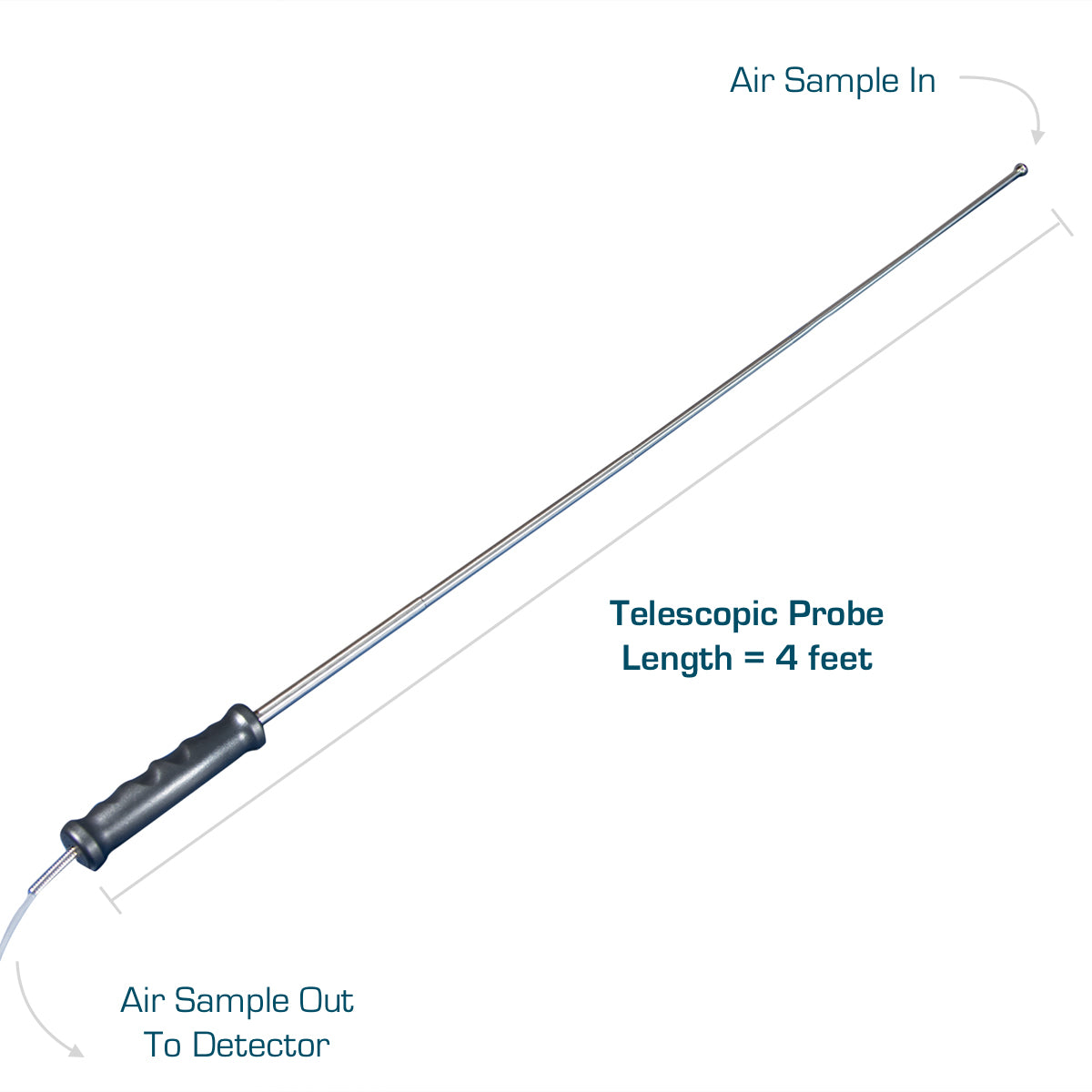

Probe Length:聽4ft Telescopic Probe
Recommended Calibration Period: 12 months
Carry Case Weight:聽3.1 lb with analyzer & accessories
Carry Case Dimensions:聽9 x 7 x 5 inches
Alarm: LED, Buzzer, and Vibration
