Brand:聽FORENSICS DETECTORS
Model:聽FD-90A-SiH4
User Manual:
Blog Article:

Features:

• 馃攱聽ACCURACY: Made to detect silane (SiH4) in air, 0 - 10 ppm with 0.01 ppm resolution. Comes FACTORY-CALIBRATED.
• 鈿涳笍 DETECT: Electrochemical sensor with zero and span calibration options.聽
• 馃巻 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.
• 馃挭 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
• 馃暤锔?TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

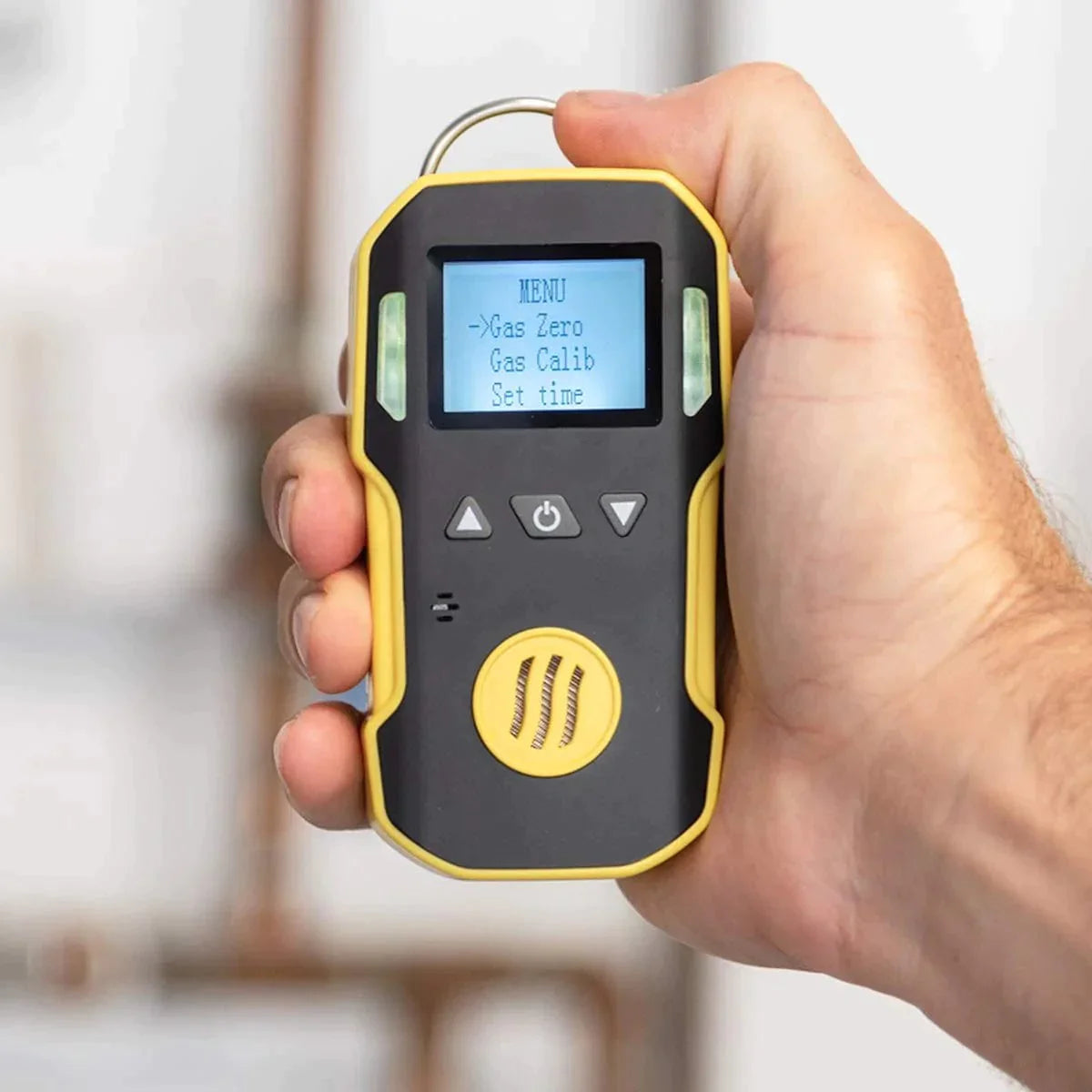

Details: Our silane gas detector delivers precise, real-time monitoring of this highly dangerous gas. With fast detection speed and accuracy, this monitor safeguards your workplace while ensuring compliance with OSHA's Permissible Exposure Limit (PEL) of 5 ppm and NIOSH's Recommended Exposure Limit (REL) of 5 ppm. The system features adjustable alarm levels and prominent visual and buzzer alerts to warn personnel of hazardous silane concentrations before approaching the NIOSH Immediately Dangerous to Life or Health (IDLH) concentration of 50 ppm.

This silane gas detector is made for semiconductor fabrication, solar panel manufacturing, fiber optics production, chemical processing, electronics manufacturing, and research laboratories; our detector provides essential protection wherever silane is handled or stored. The robust construction resists harsh industrial conditions while delivering the critical early detection necessary to prevent dangerous exposure incidents that can lead to severe respiratory damage, chemical burns, and spontaneous combustion risks. Simple calibration procedures and low-maintenance operations ensure uninterrupted protection and ongoing compliance with safety regulations for your facility and employees.

Included: Silane Gas Detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Options:聽聽

Calibration Kit (DIY sold separately):聽
聽Surrogate Gas Sulfur Dioxide SO2 10ppm : 4ppm Silane is used for calibration.

Accessories聽(sold separately):聽Pump and Probe
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (SiH4) (email us)

Specifications

Silane Gas (SiH4): 0 - 10 ppm with 0.01 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas sensor Life: 2- 3 years
Error: 鈮?卤 5% F.S
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal temperature, and battery level聽
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration聽
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
