Brand:聽FORENSICS DETECTORS
Model:聽FD-311-He
User Manual:
Blog Article:
Features:
Details: This is a professional Helium gas analyzer by Forensics Detectors. Equipped with an advanced thermal conductivity sensor and a built-in pump. Comes factory-calibrated with a NIST traceability certificate. The detection range of He gas is 0 - 100% within 30 seconds at an accuracy of +/- 5% full-scale.聽Comes聽factory NIST calibrated from Los Angeles, CA.聽The detector has a DC3.7V Li-battery 2000mAh that allows for聽over 6 hours of continuous use. Includes advanced features such as high-resolution LCD, backlight high-resolution LCD, calibration features, and a built-in pump to draw your sample and increase response time and ensure constant pressure and flow for the most accurate He readings.聽
This helium gas analyzer can draw a gas sample to analyze gas mixes for breathing, trimix scuba, compressed gas, industrial applications, welding, and research聽& development. It also comes with a probe and tubing to be used as a Helium gas leak analyzer used in various equipment including vacuum equipment, spectrometers, and cryogenics. Since helium is light, it is an excellent tracer gas and can penetrate leaks or compromised seals to then be detected and ultimately find a leak.聽
Helium is a gaseous compound that is colorless, odorless, and tasteless. It can be isolated from natural gas when the other compounds are liquefied at a low temperature and high pressure - the helium remains as a gas. It finds uses in welding for metals, rocket propulsion, meteorology, cryogenics, breathing operations, technical diving, and scuba.

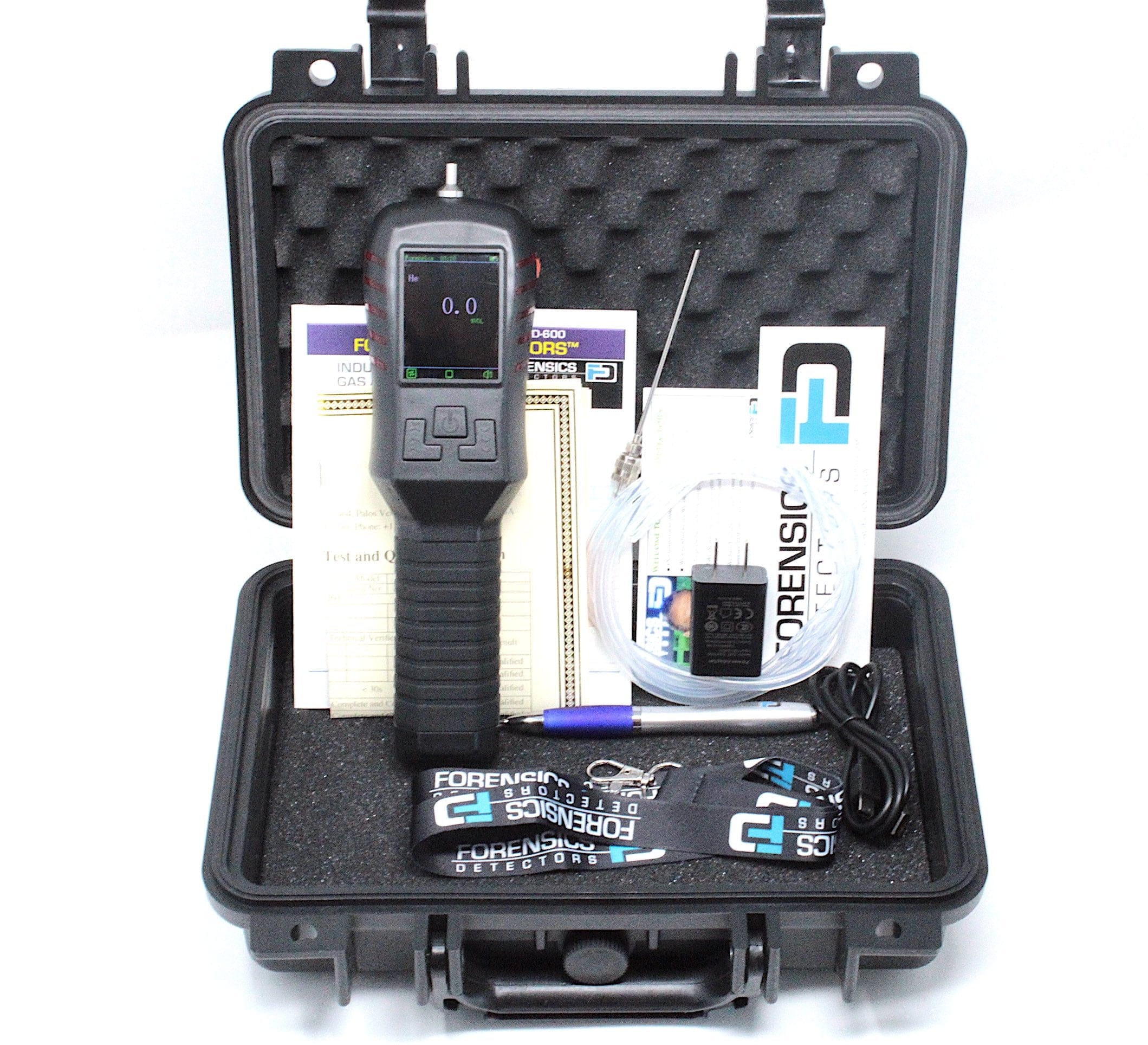

Included: Helium Gas Analyzer, English manual, USB charging cable, charger, analyzer hard carry case, 3-inch stainless probe with tubing, and USA NIST calibration certificate.
Calibration Options:聽聽
Calibration Kit (DIY sold separately):聽聽
Accessories (sold separately):
Gas Detector Stand
Helium Gas (He) Detection: 0 -聽100%聽 with 0.1% resolution
Error:聽<卤5% F.S.
Response Time: 鈮?30 sec
Display: High-Resolution聽Color LCD
Alarms: LED, sound, and vibration
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Operating Voltage: DC3.7V Li-battery 2000 mAh
Working Time: > 6 hours
Charging Time: 4 hours
Gas Sensor Type: Thermal Conductivity Sensor
Gas Sensor Life: > 5 years
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Protection Category: IP65
Explosion Proof: Ex ib IIB T3 Gb
Dimension/Weight: 9.5 x 2.5 x 1.7 inches, 440grams
Pump Noise: <70dB
Pump Flow: 0.5 LPM
Inlet Air Barb: 5mm diameter聽stainless steel barb
Recharge: USB Charger (5V @ 1A) with USB mini cable
