Brand: FORENSICS DETECTORS
Model: FD-600-ACID
Data Logging:聽User Manual:聽聽
Blog Article:聽

Features:

• 鈿涳笍 DETECT: This acid gas analyzer is sensitive to acidic gases such as acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C鈧侶鈧凮鈧? and formic acid (CH2O2). The unit has a built-in pump for fast detection and point sampling, and leak detection.
• 馃寛聽COLOR:聽Color screen and graph functions allow for easy and intuitive operation. USB computer data logging included.
• 馃摬聽ALARMS:聽The detector records alarm events with date and time stamps.
• 馃挭聽STRONG:聽Robust design constructed with high-strength ABS and anti-slip grip rubber.聽
• 馃暤锔?/span>聽TRUSTWORTHY:聽** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

Details: This professional acidic gas analyzer is perfect for point sampling and leak detection.聽 This acid gas analyzer is sensitive to acidic gases such as acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C鈧侶鈧凮鈧? and formic acid (CH2O2). Tracking and monitoring acidic gases is important in processing, spot checking, indoor vapor cloud checking, laboratory, and personal safety.聽 Acid gases are present in numerous industrial processes. This unit is the most professional acid gas analyzer with a built-in pump allowing for super-fast detection & response, point probe sampling, and continuous monitoring. Perfect for tracking the build-up of acidic gas, acid gas leak detection, acid air quality, and general acid gas accumulation. This analyzer has a 32-bit microprocessor, color LCD, and graphing capability. The detector is USA NIST traceable and calibrated in Los Angeles, CA. An alternative is the , which does not have a built-in pump, making it a simple diffusion-type detector primarily made for personal protection and exposure alarming.

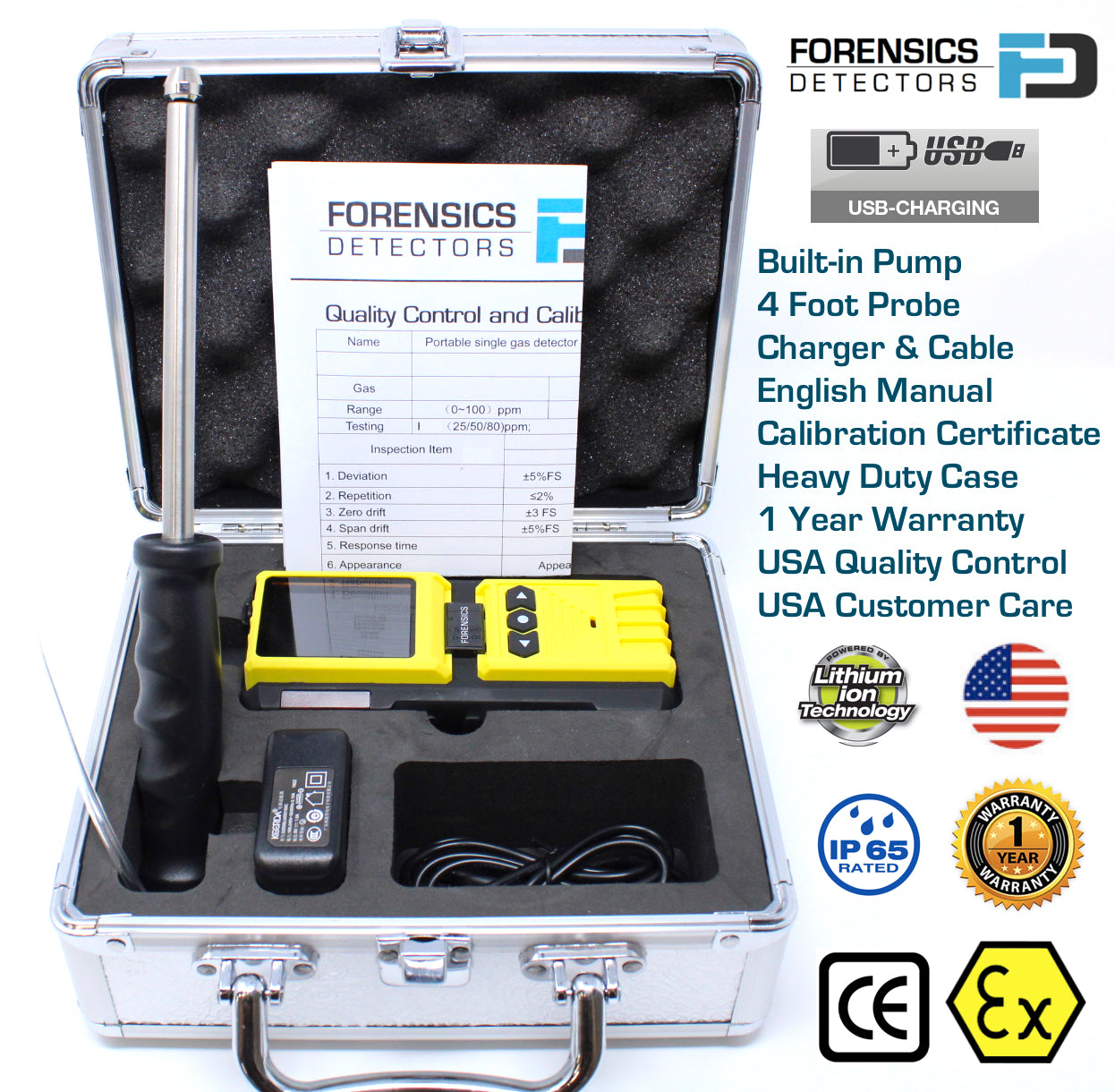

Included: Acid gas analyzer, English manual, USB charging cable, charger, analyzer case, stainless probe, tubing, and USA NIST calibration certificate.聽

Calibration Kit
(Surrogate Gas 10ppm NO2 : 10ppm ACID is used for calibration. A NO2 NIST gas standard is employed since none exists for generic ACID gas)

Calibration Service:聽

Accessories聽(sold separately):聽Gas Detector Hard Case
Gas Detector Stand
Gas Sensor Replacement聽(email us)

Specifications

Acid Gas Detection:聽 0 - 10 ppm with 0.01 ppm resolution.聽Sensitive to acidic gases such as聽acetic acid (C2H4O2), hydrochloric acid (HCl), sulfuric acid (H2SO4), hydrofluoric acid (HF), nitric acid (HNO3), peracetic acid (C鈧侶鈧凮鈧? and formic acid (CH2O2).
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source (NO2 surrogate gas)
Recommended Calibration Period: 12 months
Gas Sensor Type: electrochemical gas sensor
Gas Sensor Life: 2 - 3 years
Error: 鈮?卤 5% F.S
Response Time: < 30 sec
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Battery:聽DC 3.7V Li-on battery, 3200 mAh
Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb
Protection Grade: IP65
Weight:聽14 oz
Dimensions:聽5.1 in 脳 2.6 in x 1.2 in
Charge Time:聽4 hours
Operating Time:聽> 10 hours
Pump Rate:聽0.3 LPM - 0.5 LPM (300 - 500 cc/min)
Probe Length: 4ft Telescopic Stainless Steel Probe
