Brand:聽FORENSICS DETECTORS
Model:聽FD-90A-B2H6
User Manual:
Blog Article:

Features:

• 馃攱聽ACCURACY: Made to detect聽diborane gas聽(B2H6) in air, 0 - 5 ppm with 0.1 ppm resolution. Comes FACTORY-CALIBRATED.
• 鈿涳笍 DETECT: Electrochemical cell sensor and response time: < 30 sec. Zero and span calibration options. Comes factory-calibrated.
• 馃巻 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.
• 馃挭 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
• 馃暤锔?TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

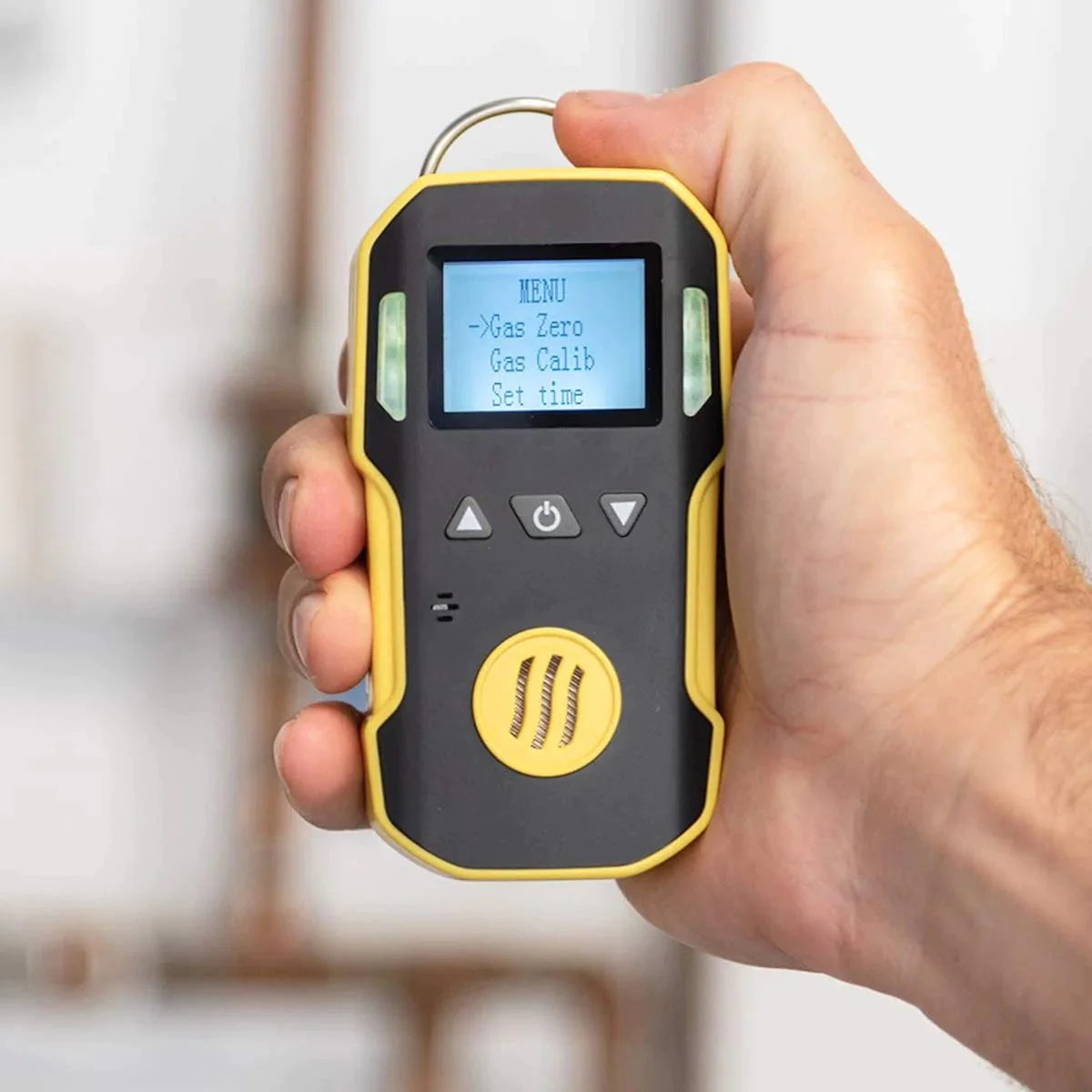

Details: The professional Diborane聽gas meter (B2H6) by FORENSICS.聽Diborane gas, also known as聽diboron hexahydride聽or B2H6 gas, is a colorless and highly toxic gas with a sharp, pungent odor. It is composed of two boron atoms and six hydrogen atoms and is primarily used in the semiconductor industry.聽The Occupational Exposure Limit (OEL) for diborane is 0.1 parts per million (ppm) for 8 hours. Exposure to 15 ppm or higher can have immediate health effects and exposure to higher concentrations can be fatal. Diborane is also highly flammable. Skin absorption, vapor pressure, water solubility, and other factors should also be considered for safety.

Diborane gas is primarily used in the chemical industry as a reducing agent and a building block for synthesizing other boron compounds. It's employed in the semiconductor industry for doping silicon and germanium, serving as a source of boron in chemical vapor deposition processes. Additionally, diborane is used in rocket fuel mixtures due to its high-energy release upon combustion, although its use is limited by its reactivity and toxicity.

Included:聽Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Options:聽聽

Calibration Kit (DIY sold separately):聽
None available. Must be calibrated by Forensics Detectors via our .Accessories聽(sold separately):聽

Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement聽(B2H6) (email us)

Specifications

Carbon Diborane Gas (B2H6) Detection: 0 - 5 ppm with 0.1 ppm resolution (Surrogate Gas 5ppm H2S : 2.5ppm B2H6 is used for calibration. A H2S NIST gas standard is employed since none exists for B2H6)
Error: better than 卤 5% F.S
Response Time: < 30 sec
Indication: LCD indicates the time, concentration, temp, and battery state
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 4 hours
Gas Sensor Type:聽Electrochemical Gas Sensor
Recommended Calibration Period: 12 months
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Explosion Rating: ATEX certified Ex ib IIC T4 Gb
Weight: about 130 g (including battery)
