Brand:聽FORENSICS DETECTORS
Model:聽FD-90A-HBr
User Manual:
Blog Article:

Features:

• 馃攱聽ACCURACY: Made to detect hydrogen bromide (HBr) in air, 0 - 20 ppm with 0.1 ppm resolution. Comes FACTORY-CALIBRATED.
• 鈿涳笍 DETECT: Electrochemical sensor with zero and span calibration options.聽
• 馃巻 ALARMS: Adjustable audio, visual, and vibration alarms alert when preset levels are reached. Alarms come with digital time stamping and logging.
• 馃挭 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof with belt clip. Rechargeable Li-ion battery 1500 mAh via micro-USB cable, comes with all accessories.
• 馃暤锔?TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

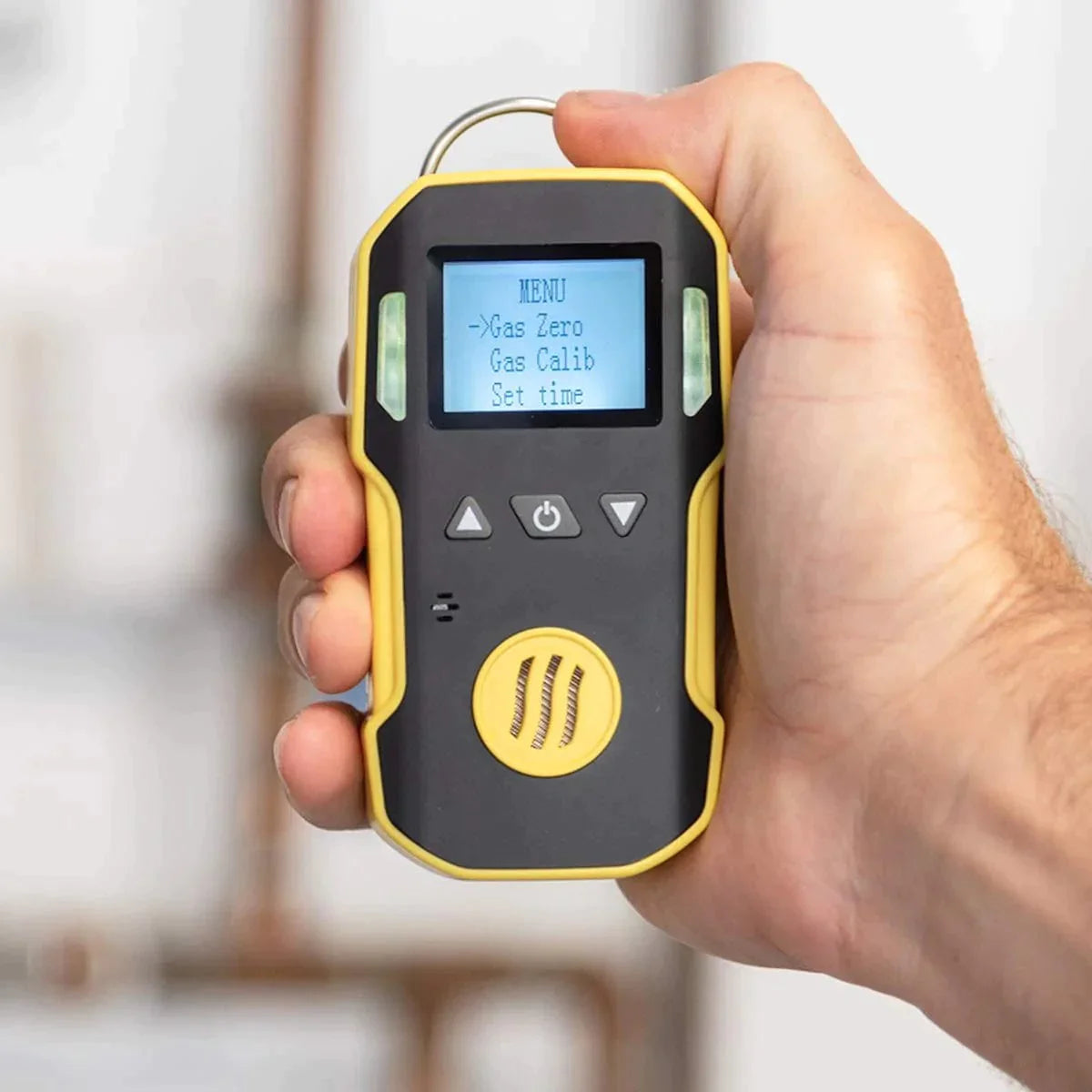

Details: Our hydrogen bromide gas detector provides reliable, continuous monitoring for this highly corrosive and dangerous gas in industrial environments. Featuring rapid response time and high sensitivity, this detector helps maintain workplace safety and regulatory compliance with OSHA's Permissible Exposure Limit (PEL) of 3 ppm (10 mg/m鲁) and NIOSH's Recommended Exposure Limit (REL) of 3 ppm (10 mg/m鲁). The device includes adjustable alarm thresholds and visual and audible warnings to protect personnel from harmful HBr concentrations before they reach the NIOSH Immediately Dangerous to Life or Health (IDLH) level of 30 ppm.

Designed for semiconductor manufacturing, chemical processing, pharmaceutical production, research laboratories, electronics manufacturing, and industrial cleaning operations, our detector ensures workplace safety wherever HBr is used or stored. The durable construction withstands harsh environments while providing the early warning needed to prevent dangerous exposure events that can cause severe respiratory irritation, pulmonary edema, and chemical burns. Easy calibration and maintenance ensure continuous protection and compliance with safety standards for your facility and workforce.

Included: Hydrogen Bromide Gas Detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Options:聽聽

Calibration Kit (DIY sold separately):聽
(Surrogate Gas Nitrogen Dioxide NO2 10ppm: 2ppm Hydrogen Bromide is used for calibration.)

Bump Gas (not available, please use calibration gas)

Accessories聽(sold separately):聽
Gas Detector Hard Case
Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (HBr) (email us)

Specifications

Hydrogen Bromide Gas (HBr): 0 - 20 ppm with 0.1 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas sensor Life: 2- 3 years
Error: 鈮?卤 5% F.S
Response Time: < 90 sec
Indicators: LCD indicates the time, concentration, internal temperature, and battery level聽
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration聽
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
