Brand:聽FORENSICS DETECTORS
Model:聽FD-90A-F2
User Manual:
Blog Article:

Features:

• 鈿涳笍 DETECT: Ultrasensitive,聽Fluorine (F2)聽gas detector, 0 - 5 ppm with 0.01 ppm resolution. Comes FACTORY-CALIBRATED.聽
• 馃尫 ACCURATE: Electrochemical cell sensor with error: 鈮?卤 10% F.S. and response time: < 30 sec. Zero and span calibration options.聽
• 馃巻 ALARMS: Adjustable audio, visual, and vibration alarms. Temperature, battery, and time tracking.
• 馃挭 STRONG: Shockproof, water-resistant, dustproof, and explosion-proof. Belt clip, charger, cable, and case included.
• 馃暤锔?TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA **聽

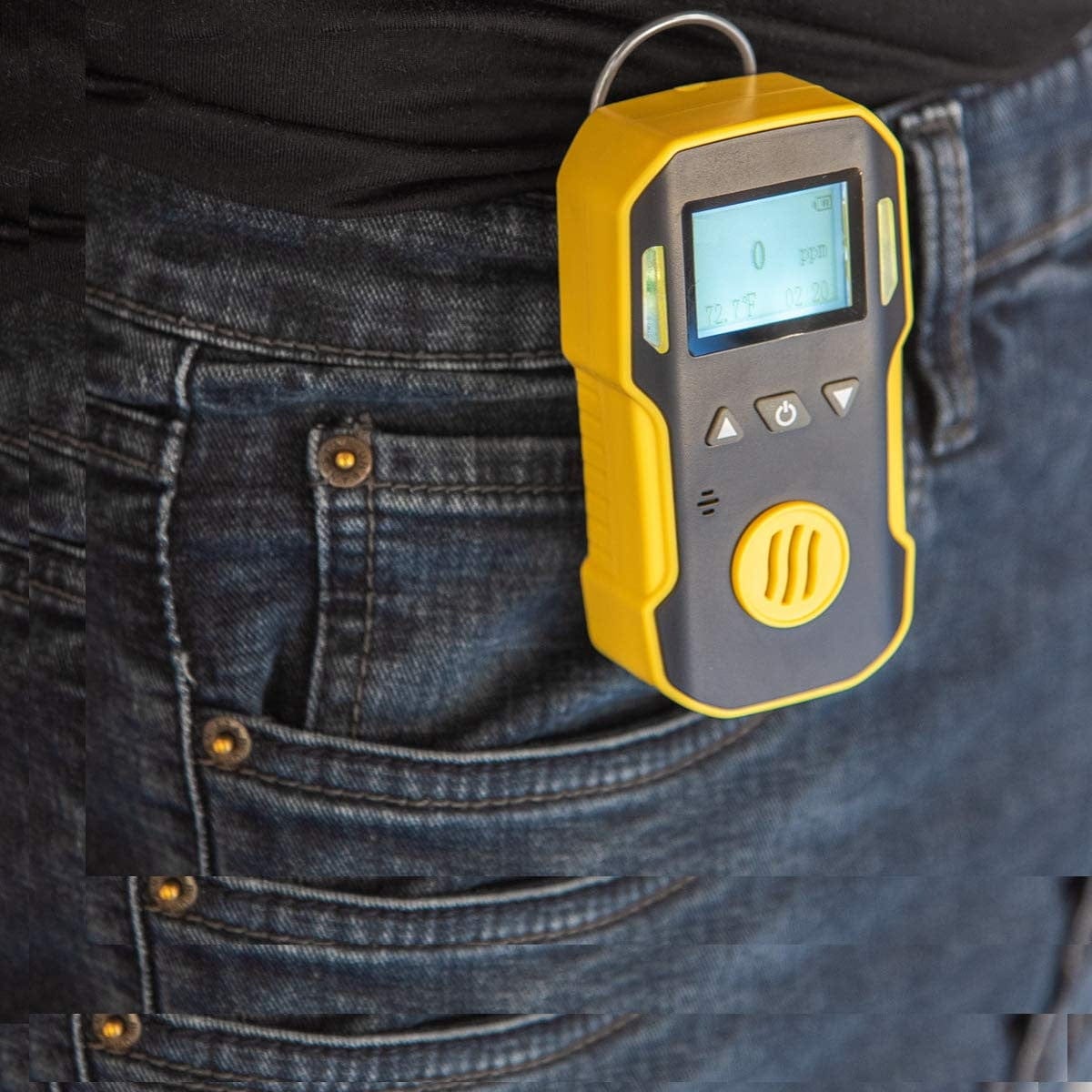

Details: This is聽our聽professional Fluorine聽(F2)聽gas detector by FORENSICS with advanced functions that comes factory-calibrated.聽Fluorine聽gas聽is a toxic and corrosive gas that requires gas detection to protect workers directly working with it.聽 If breathing F2 gas, it can irritate the nose and throat. OSHA PEL is recommended at 0.1 ppm over 8 hours and ACGIH recommended exposure is 1 ppm over 8 hours. Fluorine is a very reactive gas that is used for rocket fuel and used to make derivate compounds such as acids, fluorides, and fluorocarbons.

Included:聽Gas detector, belt clip, sling, English manual, USB charging cable, calibration cover, and USA NIST calibration certificate.

Calibration Options:聽聽

Calibration Kit聽(sold separately):聽
No calibration gas kits exist for fluorine since fluorine gas (NIST traceable calibrated) must be calibrated to an ozone or chlorine equivalent. We recommend using our to calibrate your fluorine detector and our聽to validate operation via bump testing.

Other Accessories聽(sold separately):聽聽


Gas Detector Pouch
Gas Detector Stand
Gas Sensor Replacement (email us)

Specifications

Fluorine (F2) Detection: 0 - 5 ppm with 0.01 ppm resolution
Calibration Location: Los Angeles, California, USA
Calibration Standard: USA NIST Traceable Gas Source
Recommended Calibration Period: 12 months
Gas Sensor Type: Electrochemical Gas Sensor
Gas Sensor Life: 2 - 3 years
Error: 鈮?卤 5% F.S
Response Time: < 30 sec
Indicators: LCD indicates the time, concentration, internal temperature, and battery level聽
Alarm: Indication of alarm, fault, and low voltage with LED, sound, and vibration
Store / Operating Temp:聽0掳F - 122掳F
Store / Operating Humidity:聽<95%RH
Voltage: DC 3.7V Li-battery 1500 mAh
Working Time: > 24 hours
Charging Time: 3 hours
Explosion Rating: ATEX certified Ex ib IIC T4 Gb
Weight: 5 oz / 140 g (including battery)
Dimensions: 4.3 x 2.3 x 1.7 inches
